The flexible membrane operating inside a pulse jet solenoid valve serves as the primary moving component responsible for industrial dust collection efficiency. This component separates the continuous compressed air supply from the exhaust outlet. When actuated, it rapidly shifts position to release high-energy bursts of air that clean filter bags or cartridges. Premature failure creates immediate operational hazards. A compromised seal leads to continuous compressed air leakage, drastically reducing baghouse cleaning efficiency. Facilities experience unplanned downtime as differential pressure rises across the filter media, ultimately risking environmental compliance violations due to excess particulate emissions. Moving away from reactive troubleshooting requires a systematic approach. Facility operators must transition toward proactive specification, accurate failure diagnosis, and optimized replacement schedules.
This technical evaluation guide provides the framework to analyze operating conditions, identify root causes of component breakdown, and execute precise maintenance protocols that maximize equipment uptime.
Material Compatibility Dictates Lifespan: Selecting the correct pulse valve diaphragm materials based on temperature, chemical exposure, and cycle frequency is the single largest factor in preventing premature failure.
Visual Diagnosis is Critical: Most failures (cracking, swelling, rupturing) leave distinct physical evidence that points directly to root causes like overpressure, chemical attack, or thermal aging.
Proactive Replacement Outperforms Run-to-Failure: Establishing a preventative maintenance schedule based on Mean Time Between Failures (MTBF) significantly reduces the hidden costs of wasted compressed air and system downtime.
Installation Precision Matters: Even premium diaphragms will fail rapidly if installed with incorrect torque, improper seating, or in the presence of foreign debris on the sealing surface.
Table of Contents
Toggle
The Operational Mechanics of the Pulse Valve Diaphragm
Functionality Overview

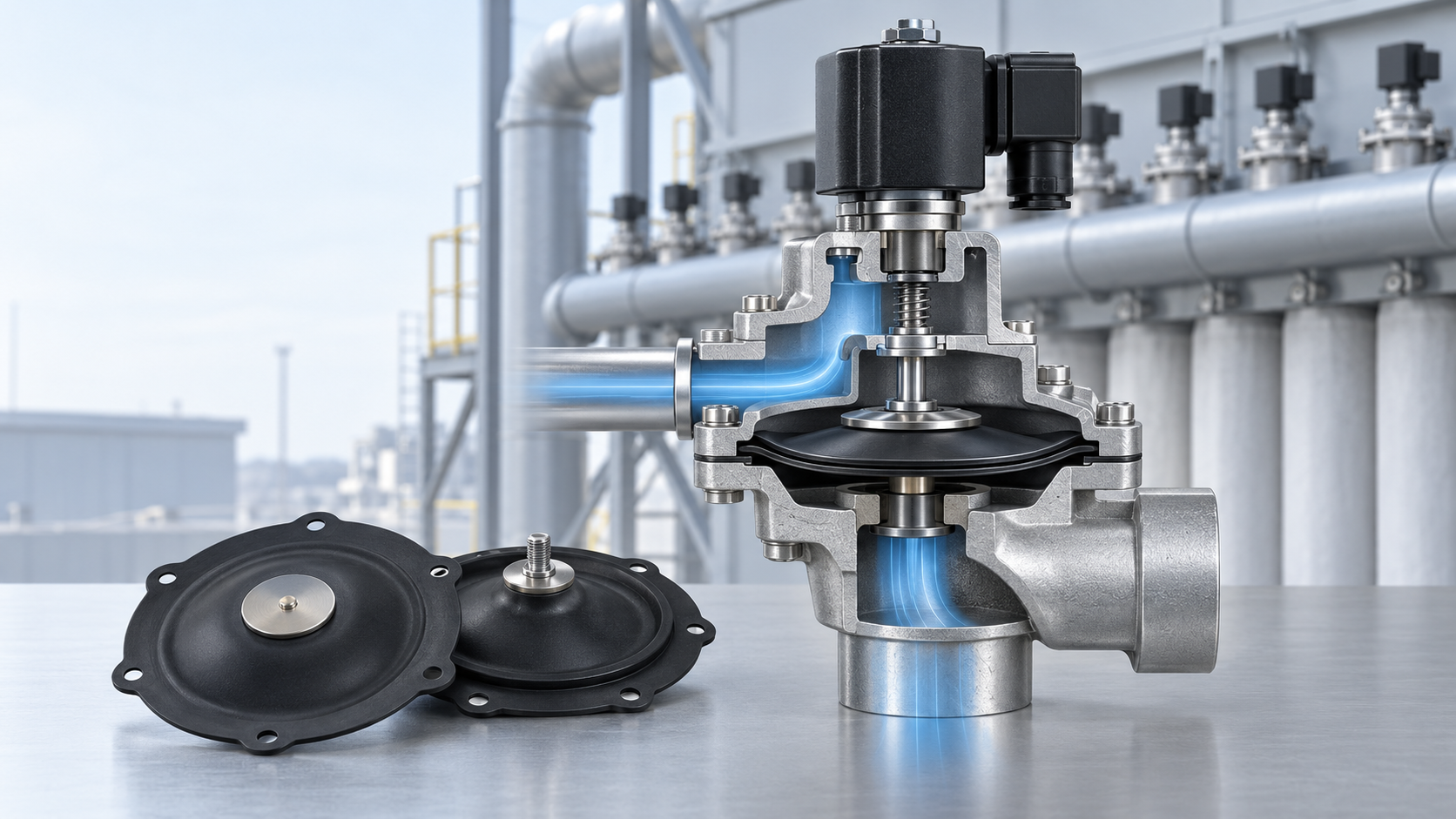

A pulse jet valve operates through rapid pressure changes. Its diaphragm separates the valve body into upper and lower chambers. Compressed air enters the lower chamber and flows into the upper chamber through a small bleed hole. Once the pressure is balanced, the larger surface area above the diaphragm pushes it downward, creating a tight seal against the valve seat.
When the timer sends an electrical signal, the solenoid pilot valve opens and releases air from the upper chamber. The resulting pressure difference lifts the diaphragm within milliseconds, allowing a high-volume air pulse to travel through the blowpipe and clean the filter media. When the signal stops, the pilot valve closes. The upper chamber repressurizes through the bleed hole, pushing the diaphragm back onto the valve seat and closing the valve.
Impact on System Efficiency
The speed at which the membrane travels from a fully closed to a fully open position dictates the cleaning power of the dust collector. A slow response time results in a weak, prolonged flow of air that fails to dislodge dust cakes from the filter media. Conversely, a rapid stroke speed generates a high-velocity acoustic shockwave. This shockwave travels down the filter bag or cartridge, momentarily flexing the media outward and shattering the accumulated dust cake.
The efficiency of this process directly impacts the differential pressure across the baghouse tube sheet. If the membrane is sluggish due to material fatigue, improper seating, or cold weather stiffening, the system consumes excessive compressed air while failing to clean the filters adequately. This inefficiency forces the induced draft fan to work harder to pull air through blinded bags, increasing electrical energy consumption and accelerating filter wear. A leaking valve also drains the compressed air header, potentially starving other pneumatic equipment in the plant.
How to Evaluate Pulse Valve Diaphragm Performance
Evaluating the performance of this component requires looking beyond basic dimensions. High-performing membranes must meet specific operational criteria to ensure long-term reliability in harsh industrial environments. Plant engineers should evaluate replacement parts against the following benchmarks:
Rapid Actuation Speed: The material must remain highly flexible to snap open and closed within fractions of a second, ensuring a crisp acoustic shockwave.
Tight Sealing Capabilities: The rubber profile must mate perfectly with the valve seat to prevent continuous air bleed, which drains compressor capacity.
High Cycle Endurance: The component must withstand millions of flexes without developing micro-cracks along the hinge points or the central metal backing plate.
Resistance to Operational Fatigue: The membrane must not permanently stretch, dish, or distort under constant header pressure.
Dimensional Stability: The material must not swell or shrink when exposed to varying temperatures or airborne chemicals. Any change in size will misalign the bleed hole and cause immediate valve failure.
Evaluating Pulse Valve Diaphragm Materials for Operating Conditions
Nitrile (Buna-N / NBR)
Nitrile rubber remains the industry standard for general-purpose dust collection applications. Its widespread adoption stems from an excellent balance of tensile strength, tear resistance, and cost-effectiveness. Nitrile performs exceptionally well in standard industrial environments where ambient and process temperatures remain moderate, typically between -20°C and 85°C. It handles general particulate loads, such as wood dust, metal shavings, mining aggregate, and agricultural grain, without issue.
However, maintenance teams must recognize its limitations. Nitrile is highly susceptible to thermal degradation. Exposing it to temperatures above 85°C accelerates the loss of plasticizers, causing the rubber to harden, become brittle, and eventually snap along the flex lines. Furthermore, Nitrile offers poor resistance to ozone exposure and specific aggressive chemicals. It is entirely unsuitable for applications involving strong acids, ketones, or heavy solvent vapors. If a plant uses synthetic compressor oils and lacks proper coalescing filters, the oil carryover will rapidly degrade standard Nitrile components.
Viton (FKM) / Fluoroplastics
When operating conditions push past the thermal limits of standard rubber, Viton (FKM) and engineered fluoroplastics become the mandatory specification. These advanced pulse valve diaphragm materials are specifically formulated for extreme environments, easily withstanding continuous operating temperatures up to 200°C. They are the primary choice for chemical processing plants, cement kilns, foundries, smelting operations, and asphalt production facilities.
Beyond heat resistance, FKM provides superior defense against aggressive chemical attacks. It resists degradation from oils, fuels, and corrosive gases that would rapidly destroy Nitrile. The trade-offs involve higher initial procurement costs and a vulnerability to extreme cold. In freezing environments, standard FKM can become brittle, losing the flexibility required for rapid actuation. Additionally, if process temperatures consistently exceed the 200°C threshold, even premium fluoroplastics will experience accelerated aging, hardening, and eventual structural failure.
Thermoplastic Elastomers (TPE) / Polyurethane
Thermoplastic Elastomers (TPE) and Polyurethane bridge the gap between traditional rubber and rigid plastics, offering unparalleled mechanical durability. These materials are engineered for applications demanding extreme cycle longevity and high abrasion resistance. In facilities where the dust collector runs continuously with high-frequency pulsing, TPE membranes outlast standard rubber by maintaining their structural memory and resisting flex fatigue.
They also exhibit excellent low-temperature flexibility, making them ideal for outdoor installations in frigid climates where temperatures drop below -40°C. However, the primary limitation of TPE and Polyurethane is their thermal ceiling. They generally feature a lower maximum temperature threshold compared to fluoroplastics and even some high-grade Nitrile blends. Exposing TPE to elevated heat causes the material to soften, leading to extrusion through the valve seat and immediate loss of sealing integrity.
Decision Framework: Matching Material to Environment
Selecting the correct material requires a systematic evaluation of the specific baghouse environment. Facility managers must weigh multiple variables rather than defaulting to the cheapest replacement part. The decision matrix must account for fluid and air characteristics, operating pressure limits, ambient temperature ranges, and the presence of compressor oil carryover.
Material Type
Temperature Range
Best Applications
Primary Vulnerability
Nitrile (Buna-N)
-20°C to 85°C
Woodworking, grain, general manufacturing, mining
High heat, ozone, synthetic compressor oils
Viton (FKM)
-15°C to 200°C
Cement kilns, foundries, chemical processing, asphalt
Air quality considerations play a massive role in material longevity. The compressed air driving the cleaning system is rarely perfectly clean. Evaluators must account for the actual condition of the air supply, which often contains moisture, rust scale from old piping, and synthetic lubricants bypassing the compressor traps. Synthetic compressor oils are notoriously aggressive toward standard Nitrile rubber. If a facility utilizes synthetic lubricants and lacks adequate air drying and filtration at the header, the airborne oil will pool inside the valve body. This leads to rapid chemical breakdown of the membrane, regardless of the ambient temperature. Matching the material to the reality of the compressed air quality prevents premature chemical degradation and extends the maintenance interval.
Diagnosing Pulse Valve Diaphragm Failure Modes
Aging, Embrittlement, and Cracking
The most common end-of-life scenario for a pulse valve diaphragm is mechanical fatigue combined with thermal aging. Over millions of flex cycles, the constant stretching and compressing degrade the polymer chains. When this natural wear is accelerated by operating above the material's rated temperature limits, the rubber loses its plasticizers. The material transitions from a pliable membrane to a rigid, brittle disc.
Root causes include radiant heat from process equipment, undersized valves forcing excessive cycle rates, or simply exceeding the maximum cycle life of the component. Diagnostic symptoms are highly visible during operation. The valve will exhibit a sluggish response, failing to produce the sharp, acoustic "crack" associated with a healthy pulse. Instead, operators hear a dull, weak impact. Furthermore, micro-cracks along the flex points allow air to bypass the seal, resulting in a continuous, minor hissing sound of air leaking through the exhaust port. Upon physical inspection, the rubber will snap rather than bend when folded.
Swelling and Chemical Degradation
When a membrane comes into contact with incompatible fluids or gases, it undergoes a chemical reaction that fundamentally alters its physical dimensions. Swelling occurs when the rubber absorbs airborne chemicals, moisture, or synthetic oils that have bypassed the compressor's moisture separators and oil traps. As the material absorbs these contaminants, it expands, softens, and loses its structural rigidity. The root cause is a direct mismatch between the membrane material and the process environment.
Diagnostic symptoms are distinct. Because the membrane has grown in size, it can no longer fit properly within the machined tolerances of the valve body. The valve fails to close completely, leading to a massive, continuous blow-through of compressed air. Upon physical inspection, the membrane will appear distorted, wavy, and spongy to the touch. The pilot hole may also be squeezed shut by the expanding rubber, completely disabling the actuation mechanism. If you place a swollen membrane next to a new replacement, the dimensional difference is immediately obvious.
Mechanical Rupture, Overpressure, and Abrasion
Catastrophic failures occur when the physical forces acting on the membrane exceed its tensile strength. Mechanical rupture is characterized by a massive tear or complete blowout of the rubber. Root causes include fluid or air pressure spiking well beyond the valve's rated limits, severe water hammer effects in poorly drained air headers, or continuous abrasion.
Abrasion typically happens when rust, pipe scale, or desiccant dust travels through the air lines and acts like sandpaper against the flexing rubber. Diagnostic symptoms of a rupture are impossible to ignore. The failure is sudden and catastrophic, resulting in a massive, audible loss of compressed air. The cleaning pulse is completely lost, and the header pressure drops rapidly, often triggering low-pressure alarms across the entire pneumatic system. Visual inspection will reveal jagged tears, heavily scored sealing surfaces, or a membrane that has been blown entirely out of its seating groove.
Bleed Hole / Pilot Hole Blockages (Secondary Failure)
Not all valve failures are caused by a destroyed membrane. Often, the rubber is perfectly intact, but the valve refuses to function due to a blocked bleed hole. The bleed hole is a tiny orifice that allows air to pass from the lower chamber to the upper chamber, equalizing the pressure and keeping the valve closed. If this hole becomes obstructed, the pressure dynamics collapse.
Root causes include foreign objects, rust flakes, Teflon tape debris from pipe installation, or frozen moisture clogging the orifice. When the bleed hole is blocked, the upper chamber cannot repressurize after a pulse. Diagnostic symptoms mimic a torn membrane: the valve stays locked open, resulting in a continuous blow-through of air. Conversely, if the pilot exhaust port is blocked, the upper chamber cannot vent, and the valve fails to fire entirely. Maintenance personnel frequently misdiagnose this issue, throwing away perfectly good membranes when a simple cleaning of the bleed hole would have restored full functionality.
Failure Mode
Visual Evidence
Operational Symptom
Root Cause
Embrittlement
Hard, inflexible rubber; micro-cracks
Sluggish pulse, minor air hiss
Thermal aging, exceeding cycle life
Swelling
Wavy, oversized, spongy texture
Valve stuck open, continuous blow-through
Chemical attack, synthetic oil carryover
Rupture
Jagged tears, blown-out edges
Massive air loss, zero pulse pressure
Overpressure, water hammer, abrasion
Blocked Bleed Hole
Debris lodged in the small orifice
Valve stuck open or fails to fire
Rust scale, Teflon tape, frozen moisture
Replacement and Maintenance Protocols
Inspection and Troubleshooting Steps
Executing a safe and effective inspection requires strict adherence to depressurization protocols. Before applying a wrench to any valve body, technicians must isolate the air header, lock out the compressor supply, and drain all residual pressure from the manifold. Attempting to unbolt a pressurized valve can result in severe injury. Once safe, follow these steps for disassembly and inspection:
Remove the Bonnet: Loosen the bonnet bolts evenly in a cross pattern to prevent warping the aluminum or cast iron cover. Carefully lift the bonnet away from the valve body.
Extract Components: Remove the return spring and the membrane. Note the orientation of the bleed hole relative to the valve body for reassembly.
Visual Inspection: Flex the rubber gently to check for micro-cracks along the outer edges and the central metal disc. Evaluate the seal integrity by looking for deep grooves or uneven wear patterns where the rubber meets the valve seat.
Clear the Valve Body: Shine a flashlight into the lower chamber to identify and remove any foreign debris, rust scale, or pooled water. Wipe the seating surface clean with a lint-free cloth.
Verify the Bleed Hole: Ensure the bleed hole is entirely clear by passing a fine wire or compressed air through the orifice. Do not use a drill bit, as enlarging the hole will alter the valve's timing.
Inspect the Spring: Check the return spring for signs of metal fatigue, shortening, or corrosion. A weak or broken spring will fail to push the membrane back down rapidly, compromising the performance of even a brand-new replacement part.
Preventative Maintenance vs. Run-to-Failure
Relying on a run-to-failure strategy for dust collector valves is an expensive operational mistake. The cost-benefit analysis heavily favors scheduled preventative maintenance. When a valve fails open, it can vent hundreds of cubic feet of compressed air per minute. The electrical energy wasted by the compressor trying to maintain header pressure far exceeds the cost of a replacement rebuild kit. Furthermore, compromised cleaning cycles lead to blinded filter bags, requiring premature filter replacement and causing unplanned baghouse shutdowns.
Establishing a Mean Time Between Failures (MTBF) allows facilities to replace components right before they break. Guidelines for tracking involve logging the cycle counts based on the controller's pulse frequency and recording the exact dates of component failures. If historical data shows that standard membranes crack after 18 months of continuous operation, the preventative maintenance schedule should dictate a full manifold rebuild every 15 months. This proactive approach eliminates emergency downtime, stabilizes compressed air demand, and ensures the dust collector operates at peak design efficiency.
Implementation Risks and Mitigation
The replacement process introduces its own set of risks. Incorrect installation is a primary cause of immediate, out-of-the-box failure. Common errors include over-torquing the bonnet bolts, which crushes the rubber edge and distorts the membrane, preventing it from moving freely. Pinching the rubber during reassembly or failing to clean abrasive debris off the seating surface guarantees a leak upon repressurization. Installing the membrane upside down or misaligning the bleed hole with the corresponding port in the valve body will render the valve inoperable.
Mitigation requires developing strict Standard Operating Procedures (SOPs) for maintenance teams. Technicians must utilize torque wrenches calibrated to the manufacturer's exact specifications, tightening bolts in a star pattern to ensure even pressure distribution. Thoroughly cleaning all sealing surfaces with a non-abrasive pad prior to reassembly is mandatory. Finally, facilities must evaluate the reliability of their supply chain. While aftermarket alternatives may offer cost savings, OEM rebuild kits guarantee exact dimensional tolerances and verified material compounds, reducing the risk of premature failure caused by subpar manufacturing.
Conclusion
Audit current valve performance by logging the response time and acoustic signature of every valve on the manifold.
Inspect the compressor air quality at the baghouse header to identify excessive moisture, rust scale, or synthetic oil carryover.
Calculate an accurate Mean Time Between Failures (MTBF) using historical maintenance logs to schedule proactive rebuilds.
Specify the correct rebuild kits based on actual process temperatures and chemical exposures rather than defaulting to standard materials.
Enforce strict torque specifications and cleanliness standards for all maintenance personnel executing valve rebuild procedures.
FAQ
Q: How long does a pulse valve diaphragm typically last?
A: The lifespan depends entirely on material selection and operating conditions. In standard environments with clean, dry air, a high-quality membrane typically lasts between 1 to 3 million cycles. This translates to roughly one to three years of continuous operation. High heat, chemical exposure, or rapid cycle rates will significantly reduce this lifespan.
Q: What causes a pulse valve diaphragm to rupture suddenly?
A: Sudden ruptures are generally caused by extreme physical forces. Overpressure spikes in the air header, severe water hammer from undrained moisture, or abrasive foreign objects like pipe scale damaging the sealing surface can cause catastrophic blowouts. Operating the valve well beyond its maximum rated pressure is the most common culprit.
Q: How do you know if a pulse valve diaphragm is failing?
A: Primary indicators include a continuous hissing sound of air leaking from the exhaust port, weak or sluggish cleaning pulses, and a steady increase in differential pressure across the baghouse. If the compressor runs constantly to maintain header pressure, a valve is likely stuck open.
Q: Can you repair a cracked or swollen diaphragm?
A: No. These are consumable wear parts that undergo irreversible chemical and mechanical degradation. Once the material cracks, stretches, or swells, it cannot be repaired or patched. The component must be entirely replaced using a manufacturer-approved rebuild kit.
Q: What is the best material for high-temperature pulse valves?
A: For applications exceeding standard temperature thresholds (above 85°C), Viton (FKM) and specific engineered fluoroplastics are the best choices. These materials maintain their structural integrity and sealing capabilities in continuous operating environments up to 200°C.
Q: Why is my pulse valve continuously leaking air?
A: Continuous leakage occurs when the pressure differential required to close the valve is disrupted. This is typically caused by foreign debris preventing the rubber from seating properly, a blocked bleed hole that stops the upper chamber from pressurizing, or a physical tear in the membrane itself.
